Epiphany Specification

Church of the Epiphany
Miami, Florida • USA

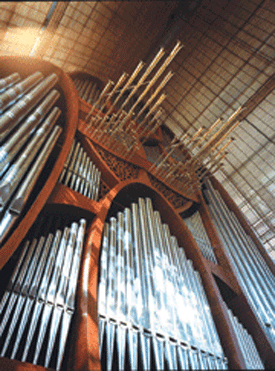

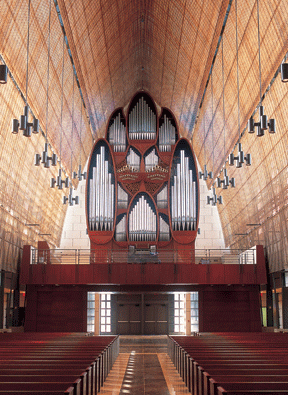

This landmark installation boasts twin three-manual consoles, a freestanding casework with front and rear façades and 61 ranks over 58 stops, including an 8' horizontally-mounted Tromba del Giubileo 2000 that plays from all three manuals and pedals of both consoles. The casework is built of solid mahogany planks using tongue-and-groove construction, much like a barrel for fine wine.

The Ruffatti organ at Church of the Epiphany in Miami, Florida, was completed in February of 2001 and used for the first time the following March 17th, on St. Patrick's Day.

"As you know, we had the Solemn Dedication of the new church on Sunday, March 17th, and I can tell you without hesitation that everyone remarked about the quality of the music, the pipe organ and the acoustics of the building. I am very, very happy with the final result of all the deliberation and hard work that went into the instrument. For this, I want to thank you and tell you that you can be very proud of this particular organ...it is spectacular."

The Reverend Monsignor Jude O'Doherty
Church of the Epiphany
Miami, Florida

CHURCH OF THE EPIPHANY
MIAMI, FLORIDA
61 Ranks, 58 Stops
Electric Action

GREAT ORGAN (Unenclosed) - Manual II			SWELL ORGAN (Enclosed) - Manual III
Spitzflöte Montre Flûte Harmonique Bourdon Prestant Flûte Octaviante Doublette Mounted Cornet V t.C Fourniture IV Cymbale IV Trompette Tromba del Giubileo 2000 Tremulant Chimes Great to Great Unison Off Great to Great MIDI A MIDI B	16’ 8’ 8’ 8’ 4’ 4’ 2’ 8’ 1 1/3’ 1/2’ 8’ 8’ 16' 4'	61 pipes 61 pipes 61 pipes 61 pipes 61 pipes 61 pipes 61 pipes 245 pipes 244 pipes 244 pipes 61 pipes 61 pipes prepared	Bourdon Doux Printipal Viole de Gambe Viole Celeste Flûte à Cheminèe Flauto Dolce Flute Celeste t.C Octave Flauto Veneziano Nazard Flûte à Bec Tierce Plein Jeu IV Petite Bombarde Trompette Harmonique Hautbois Clairon Harmonique Tromba del Giubileo 2000 Tremulant Swell to Swell Unison Off Swell to Swell MIDI A MIDI B	16’ 8’ 8’ 8’ 8’ 8’ 8’ 4’ 4’ 2 2/3’ 2’ 1 3/5’ 2’ 16’ 8’ 8’ 4’ 8’ 16' 4'	12 pipes 61 pipes 61 pipes 61 pipes 61 pipes 61 pipes 49 pipes 61 pipes 61 pipes 61 pipes 61 pipes 61 pipes 244 pipes 61 pipes 61 pipes 61 pipes 12 pipes Great
CHOIR ORGAN (Enclosed) - Manual I			PEDAL ORGAN (Unenclosed)
Holzgedackt Viola Pomposa Viola Celeste Ottabve Koppelflöte Fifteenth Larigot Ripieno IV Cromorne Tromba del Giubileo 2000 Tremulant Harp Celesta Choir to Choir Unison Off Choir to Choir MIDI A MIDI B	8’ 8’ 8’ 4’ 4’ 2’ 1 1/3’ 1’ 8’ 8’ 8’ 4’ 16' 4'	61 pipes 61 pipes 61 pipes 61 pipes 61 pipes 61 pipes 61 pipes 244 pipes 61 pipes Great prepared prepared	Resultant Principal Soubasse Spitzflöte Bourdon Doux Octave Flute Flûte à Cheminèe Prestant Flute Mixture IV Contre Bombarde Bombarde Petite Bombarde Trompette Clairon Cromorne Tromba del Giubileo 2000 MIDI A MIDI B	32’ 16’ 16’ 16’ 16’ 8’ 8’ 8’ 4’ 4’ 2 2/3’ 32’ 16’ 16’ 8’ 4’ 4’ 8’	32 pipes 32 pipes Great Swell 12 pipes 32 pipes Swell 12 pipes 12 pipes 128 pipes 32 pipes 12 pipes Swell 32 pipes 12 pipes Choir Great
INTER-MANUAL COUPLERS			REVERSIBLES
Swell to Great Choir to Great Swell to Choir Choir to Swell Great to Pedal Swell to Pedal Choir to Pedal CANCELS not affected by combination action Great and Pedal Reeds Swell Reeds Choir Reeds All Reeds Great and Pedal Mixtures Choir Mixture Swell Mixture All Mixtures		16’ 8’ 4’ 16’ 8’ 4’ 16’ 8’ 4’ 16’ 8’ 4’ 8’ 4’ 8’ 4’ 8’ 4’	Swell to Great Choir to Great Swell to Choir Choir to Swell Great to Pedal Swell to Pedal Choir to Pedal Tutti (Full organ) Great/Choir Transfer 16’ Manual Stops Silent		Thumb and toe Thumb and toe Thumb and toe Thumb and toe Thumb and toe Thumb and toe Thumb and toe Thumb and toe Thumb Thumb
